■特征
●LCD驅動電路 (Max. 128outputs (4 outputs as for general purpose ports))
●可編程占空比 (1/2 Duty Ratio/Driving max. 256 segments :1/3 Duty Ratio /Driving max. 384 segments :1/4 Duty ●Ratio :Driving max. 512 segments)
●可編程偏置比 (1/2, 1/3 bias ratio)
●串行數據傳送 (Shift clock max. 2MHz)
●內建振蕩器 (CR oscillation with external resistor and capacitance, or external oscillation signal input)
●工作電壓 (3.0V/5.0V)
●C-MOS技術 (P-Sub)
●封裝 (LQFP144 20mm*20mm t=1.7mm(max) Pin-pitch=0.5mm)

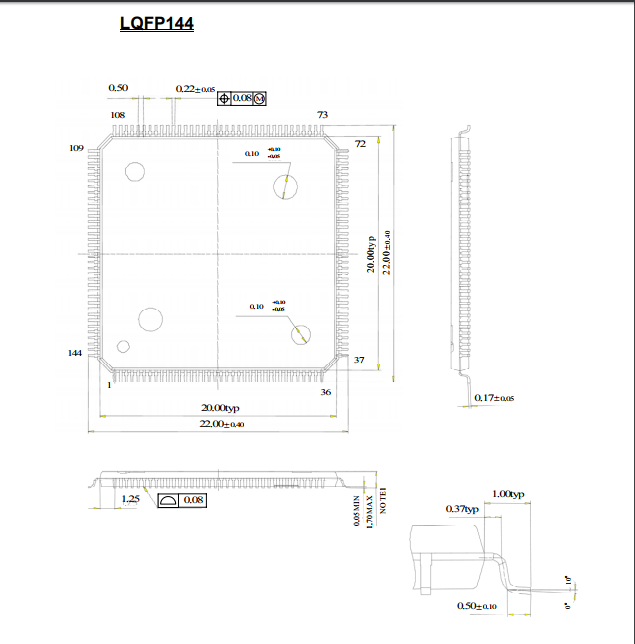

NJU6543FL1 封裝圖
更多產品詳情信息請聯系本公司
NJU6543
