S product name: NJMDAC - 08

S function name: 8 bits high-speed multiplication type D/A converters

S profile

NJMDAC - 08 c series is the multiplication of the 8 monolithic integrated type d/a converter, with very high speed performance. The output is open collector type double complementary output current, applications have very strong flexibility. Through the VLC stitch adjustable threshold logic input voltage, so can be connected to different types of digital IC products.

S characteristics

Low resolution (8)

Low setting time (85 ns)

Low wide working voltage range (+ / - 5 v to + 18 v)

Low output voltage wide range (18-10 v to + v)

When a wide range of adjustable threshold logic input (- 10 V to + 13.5 V (V + - = + 15 V/V))

Low multiplication operations can be performed

Low bipolar technology

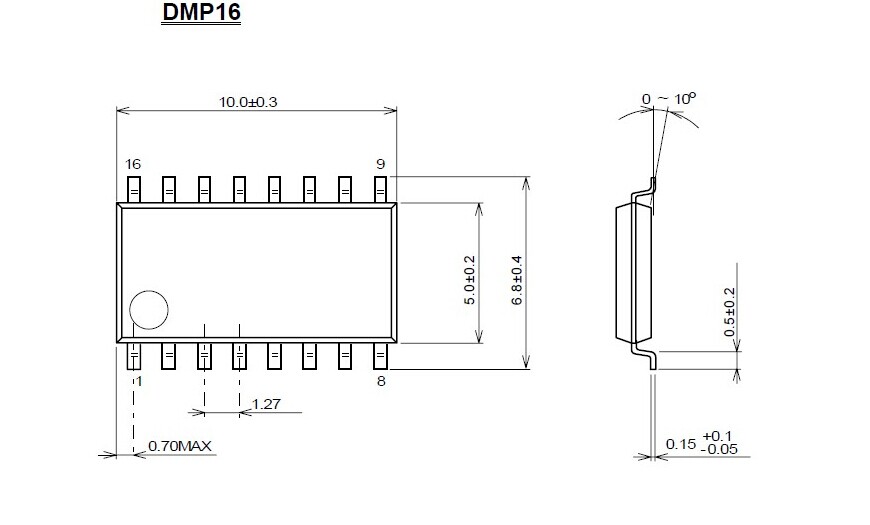

Low encapsulation (DIP16 DMP16)
