S product name: NJM2901
S function name: single-supply comparator four road
S profile
NJM2901 provides a higher frequency than internal compensation four-way operational amplifier and faster switching operation. For single power supply applications, because it is darlington PNP forms of input stage, can make the comparison, including 0 v voltage. When the output level of 400 mv, 2 order common emitter output circuit provides an output absorptive capacity gain and 6 ma. Output collector keep open allows designers to the range of 2 v to 36 v drive equipment.
S performance characteristics
When single power supply work
Low working voltage (v to 36 v + + 2)
Low open collector output
Low bipolar technology

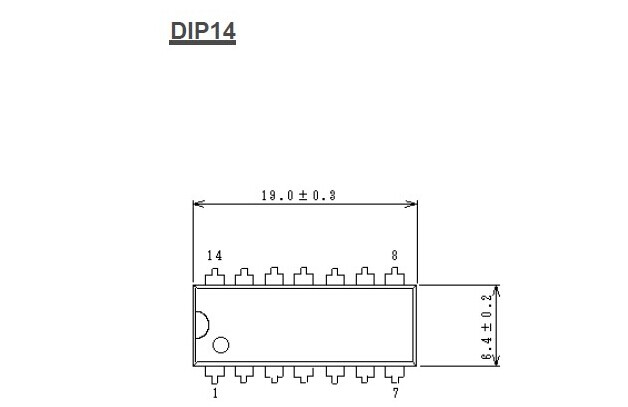

Low encapsulation (DIP14 DMP14, SSOP14)
