S product name: NJM2509
S function name: video adder with Y -c mixer
S profile
NJM2509 is Y/C mixing circuit video overlay. Y signal input with the top of the sync pulse clamp function, is suitable for video signal fixed DC level. Superposition voltage in internal fixation for white or black level, this product also contains 6 db amplifier.
S characteristics
Low built-in Y/C mixing circuit
Low clamp circuit (Y) signal, the bias circuit (C)
Superposition of low voltage in inner fixed for white or black level
Low 6 db amplifier circuit (input: 0.5 the VP - P output: 1.0 the VP - P)

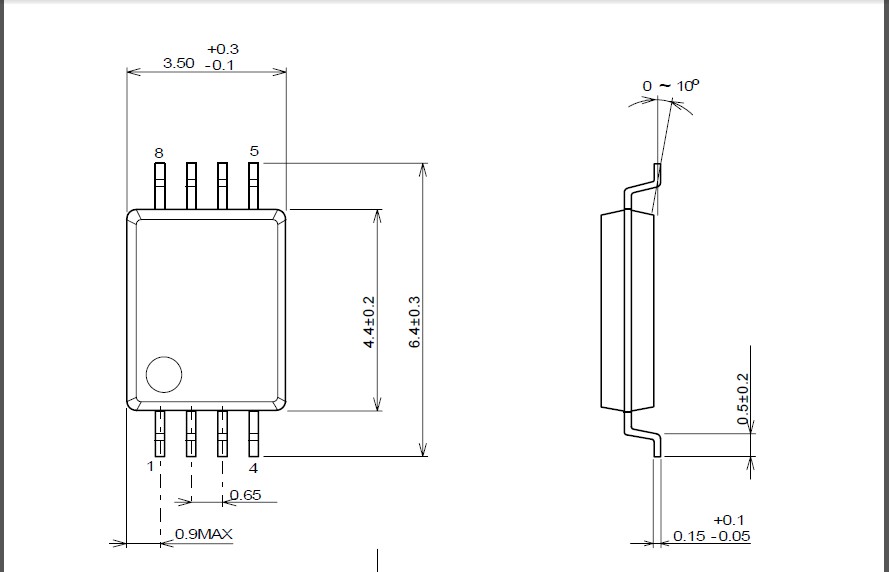

Low encapsulation (SSOP8)
Low bipolar technology
