S product name: NJU4052B

S function name: two-way, 4 channel analog multiplexer

S profile

NJU4052B is composed of three binary digital signal to control the double channel 4 channel analog switch analog multiplexer. Its working voltage range is from 3 to 18 v, current consumption to 5 mu A lowest (VDD = 5 v). This product with RCA CD4052B and Motorola MC14052B fairly.

S characteristics

Low high ON/OFF ratio of output voltage (generally is 65 db (RL = 10 k Ω))

Low low current consumption (VDD = 5 v, generally for 5 mu A)

Low low crosstalk between channels (usually 80 db)

Low wide working voltage range (3 to 18 v)

Linearity of low transmission characteristics (Δ RON < 60 Ω

(VIN = VDD to VEE, which VDD = 15 v))

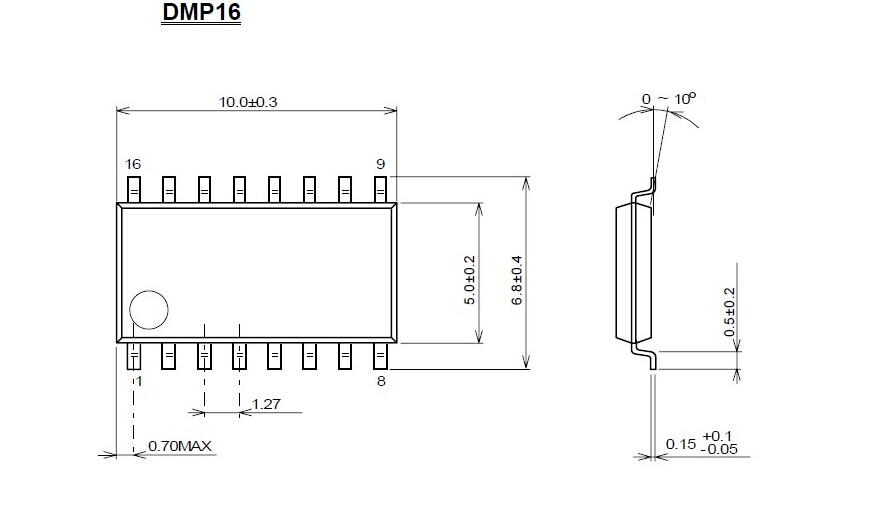

Low encapsulation (DIP/DMP/SSOP16)

Low C - MOS technology
